Introduction of surveillance equipment long distance wireless video transmitter

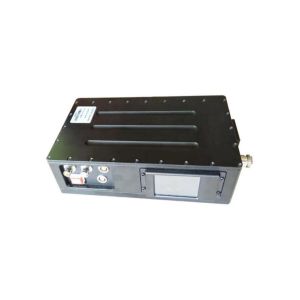

DS-HDT5000 is a new powerful HD COFDM video audio transmitter, which can up to 15-25W rf power. DS-HDT5000wireless video transmitter can transmit a super long range that up to 250km on UAV.
It adopts core technology 4th generation mobile communication COFDM modulation and low delay full-HD 1080P technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles(NLOS).
This wireless video transmitter is suitable for vehicles -- cars, boat -- boats, cars - -a building.
Transmitter parameter:
Features of 150~200km AHD + data transmitter for wireless communication HD video wireless unit:
*MPEG-4 /H.264 video compression, full HD video quality
*Military aluminum housing, black or green color option
*Mobile and NLOS (Non line-of-sight) transmission
*Strong security by AES user-defined encryption
*Low system latency
COFDM Technique Advantages
1. Strong interference:COFDM wireless transmitter is effectively against the multipath interference of signal waveform with the COFDM modulation. When the frequency selective fading occurs due to multipath transmission in the channel, only the subcarriers in the band depression and the signal carried by them are affected. The other subcarriers are not affected. Therefore, the overall bit error rate of the system is lower.
2. Anti-multipath fading: COFDM wireless audio video transmitter is effectively against the interference with the multi-carrier technique (COFDM). Compared to the single carrier, multi-carrier inherently resistant to time delay and has strong multipath capability. With joint coding of subcarriers & frequency diversity of the channel, the system’s performance is improved. Therefore, COFDM wireless system is suitable for multi-path environment and fading channel high-speed audio video data transmission.
3. LOS & NLOS operation: with strong penetration, strong diffraction & strong anti-interference, COFDM wireless system is suitable for high-speed mobile wireless transmission in NLOS &LOS operation without servo stability control assistance, such as on UAV to mobile vehicle, uav to groun station, UAV to vessle...
Warranty:
1. Twelve months free warranty for equipment
2. Three months for components
3. Replcaement parts will be charged after one year
| Modulate | COFDM |
| Working voltage | DC12V |
| Working current | ≤6A@DC12V |
| RF bandwidth | 2/4/6/8MHz (adjustable) |
| Frequency | 300-900Mhz or other frequency customized |
| Output power | 10-20W adjustable |
| Video input | HDM/SDI; CVBS |
| Data input (option) | RS232/TTL, up to 115200bps |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps |
| Video coding | MPEG-2/H.264/H265 |
| Video rate | 512Kbps-16Mbps (adjustable) |
| Encryption | AES 128 bits |
| AV input | 1Vp-p, 75Ω. Left and right channel |
| Video system | PAL/NTSC |
| Power flatness | Full band ≤1.5dB |
| CNR | ≥25dBc@48dBm |
| Second harmonic | ≥60dBc |
| CBER | <2.0E-4 |
| VBER | <1.0E-7 |
| MER | 32dB |
| Carrier | 2k 4k 8k |
| Constellation | QPSK,16QAM,64QAM (option) |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 (option) |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 (option) |
| Working Temperature | -25°C~55°C |
| Dimension | 220*140*66mm |
| Weight | 2.5kg |
Receiver parameter:
| Frequency | 300-900MHz or other frequency customized |
| Bandwidth | 2/3/4/5/6/7/8MHz (option) |
| RF input level | -94dBm~0dBm(8M)/-98dBm~0dBm(2M) |
| RF input impedance | 50Ω |
| RF input type | N type |
| Modulation | COFDM |
| Constellation | QPSK,16QAM,64QAM(adjustable) |
| FEC | 1/2,2/3,3/4,5/6,7/8(adjustable) |
| Carrier | 2k |
| Guard Interval | 1/32,1/16,1/8,1/4(adjustable) |
| Video coding | MPEG-2/H.265 |
| Screen | 4:3 16:9 |
| Video resolution | 1080P@4MHz |
| Audio output | Stereo unbalance 300/ 200mv |
| AV output | 2 Audio output + 2 Video output. SDI/HDMI/ASI |
| Working voltage | AC220V/DC12V <1A |
| working temperature | -20℃~+50℃ |
| Dimension | 480*260*45(1U chassis) |
| Weight | 1.5kg |
Popular applicaitons of our tactical COFDM wireless video audio transmission system:
1. UAV/UAS/Ballon / Air Vehicle ultra range wireless video audio link
2. Mobile vehicle/Marine vessel / boat / ship long range NLOS wireless video audio transmission
3. Manpack/Body-worn outdoor law enforcement medium range wireless video audio transmission
4. Unamnned robot/EOD robot/Firefighting robot wireless video audio transfer
5. Live feed broadcast to van / command center wireless video audio sending
Note: all our products can be customized according to users' end applicaiton in mind!
